Key Management Service (KMS)

  • Regional service (keys are bound to a region)
  • Provides encryption and decryption of data and manages keys required for it
  • Encrypted secrets can be stored in the code or environment variables
  • Encrypt up to 4KB of data per call (if data > 4 KB, use envelope encryption)
  • Integrated with lAM for authorization
  • Audit key usage with CloudTrail
  • Need to set IAM Policy & Key Policy to allow a user or role to access a KMS key

Customer Master Key (CMK)​

  • Symmetric keys (necessary for envelope encryption)
  • Must call KMS API to encrypt data
  • Two types:
    • AWS Owned CMK (free)
      • Default KMS key for each supported service
      • Fully managed by AWS (cannot view, rotate or delete them)
    • Customer Owned CMK (1$/month)
      • AWS Managed CMK
        • Generated in KMS
        • Option to enable automatic yearly rotation
      • Customer Managed CMK
        • Generated and imported from outside
        • Must be 256-bit symmetric key
        • Not recommended
      • Deletion has a waiting period (pending deletion state) between 7 - 30 days (default 30 days). The key can be recovered during the pending deletion state.

Asymmetric Keys​

  • Public (Encrypt) and Private Key (Decrypt) pair
  • Used for Encrypt/Decrypt, or Sign/Verify operations
  • The public key is downloadable, but you can’t access the Private Key unencrypted
  • No need to call the KMS API to encrypt data (data can be encrypted by the client)
  • Not eligible for automatic rotation (use manual rotation)
  • Use case: encryption outside of AWS by users who can’t call the KMS API

Key Policies​

  • Cannot access KMS keys without a key policy
  • Default Key Policy
    • Created if you don’t provide a specific Key Policy
    • Complete access to the key for the root user ⇒ any user or role can access the key (most permissible)
  • Custom Key Policy
    • Define users, roles that can access the KMS key
    • Define who can administer the key
    • Useful for cross-account access of your KMS key

Cross-region Encrypted Snapshot Migration​

  • Copy the snapshot to another region with re-encryption option using a new key in the new region (keys are bound to a region)

Cross-account Encrypted Snapshot Migration​

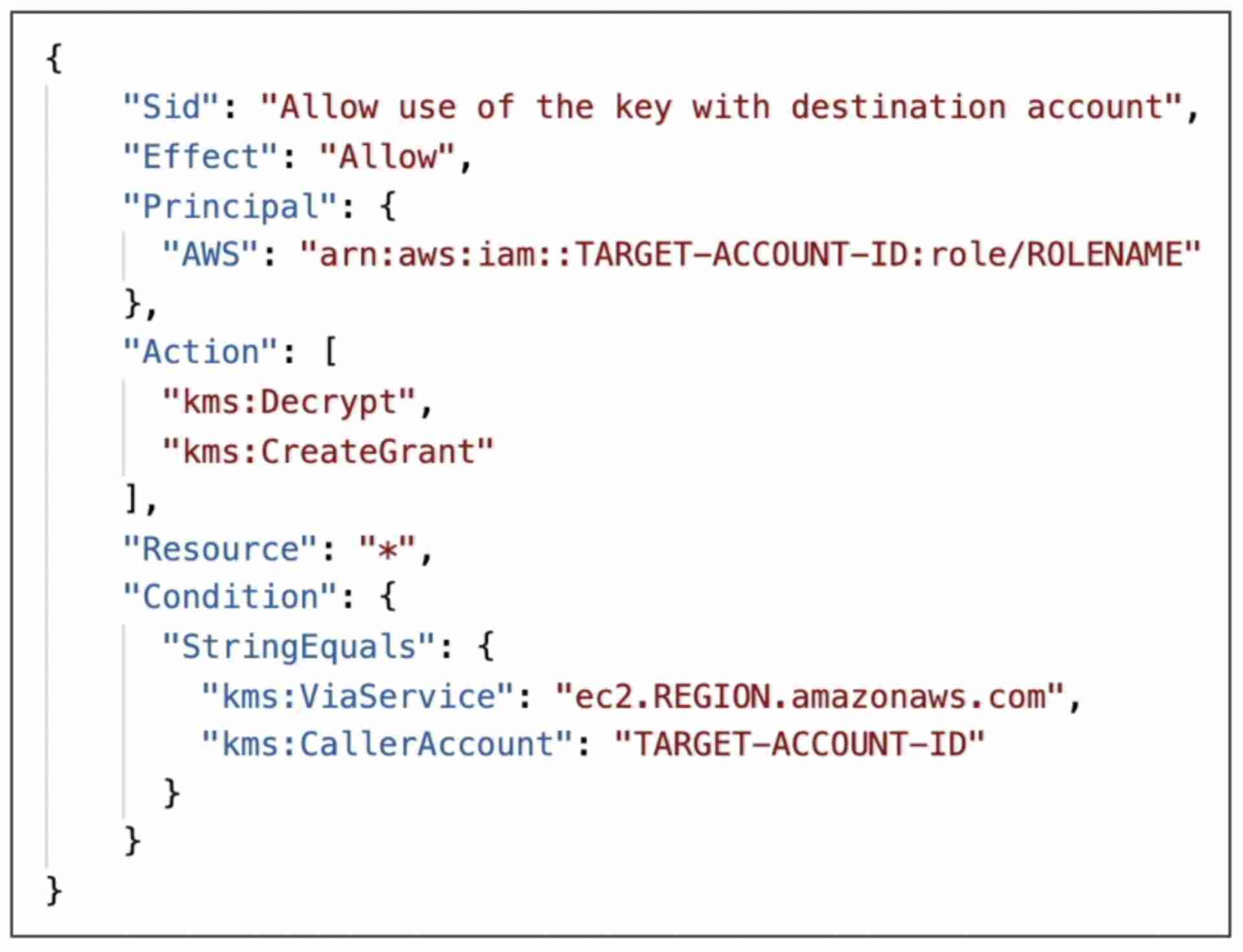

  • Attach a Key Policy to the main CMK to authorize access to an IAM role in the target account (cross-account access)
    • attachments/Pasted image 20220511214328.jpg
  • Share the encrypted snapshot with the new account
  • In the target account, create a copy of the snapshot (decryption will use the main CMK)
  • Encrypt it with a new KMS Key in your account

Key Rotation​

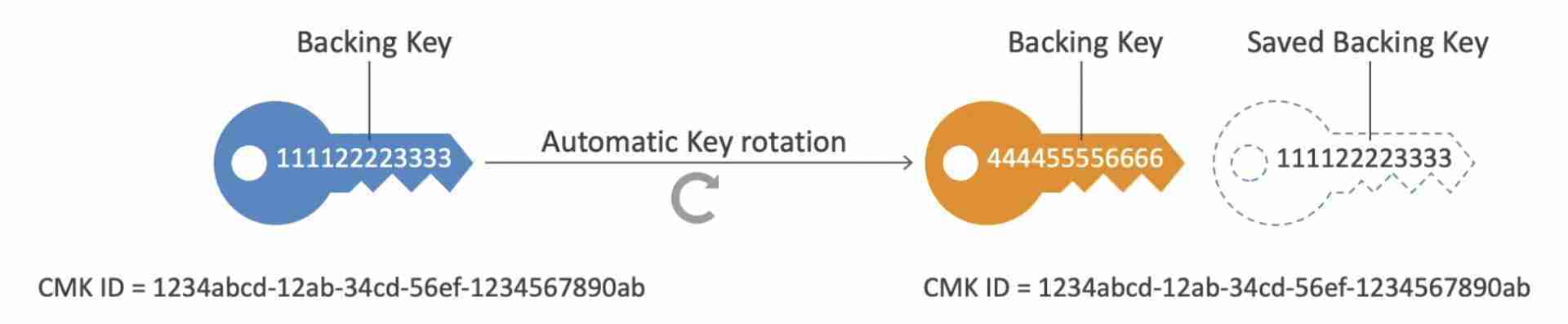

  • Automatic
    • Supported only in Customer-owned CMK
    • Automatic yearly key rotation
    • Previous key is kept active (to decrypt old data)
    • New key has the same CMK ID (only the backing key is changed)
    • Diagram
      • attachments/Pasted image 20220511215802.jpg

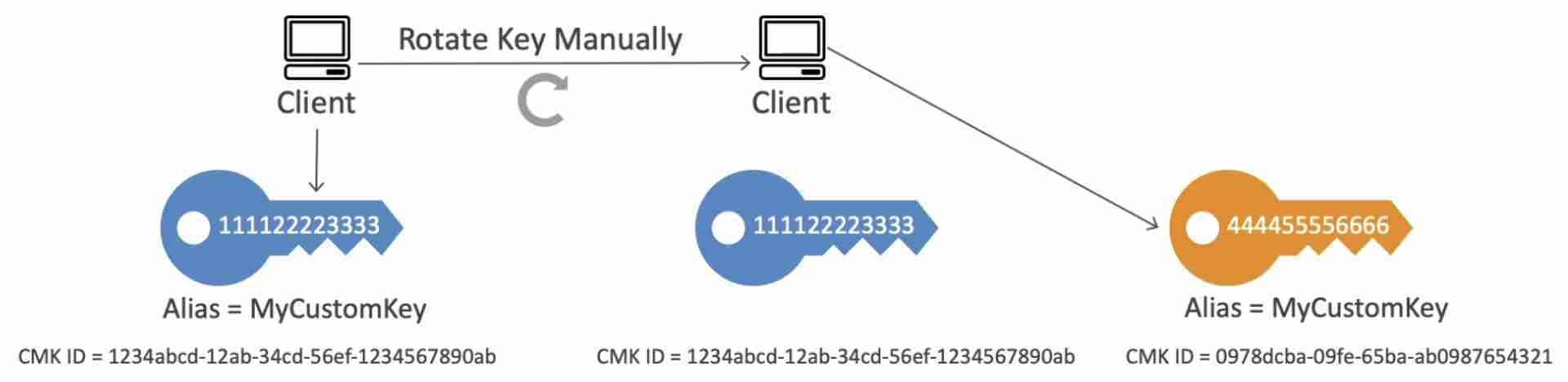

  • Manual
    • New Key has a different CMK ID
    • Keep the previous key active to decrypt old data
    • Use aliases as CMK id changes after rotation (to hide the key change for the application). After rotation, use UpdateAlias API to point the alias to the new key.
    • Good for asymmetric keys (automatic rotation not supported)
    • Diagram
      • attachments/Pasted image 20220511215742.jpg
